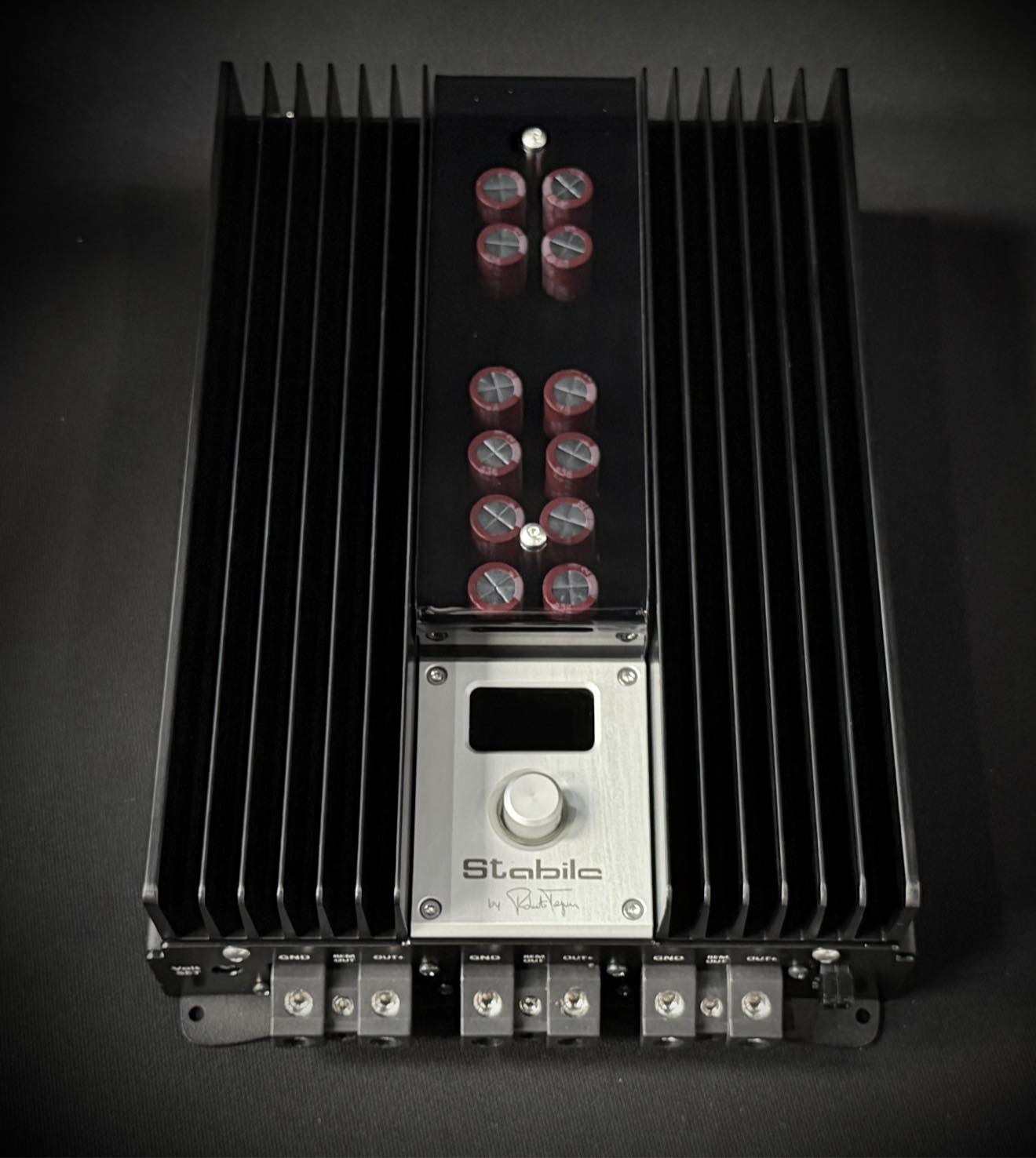

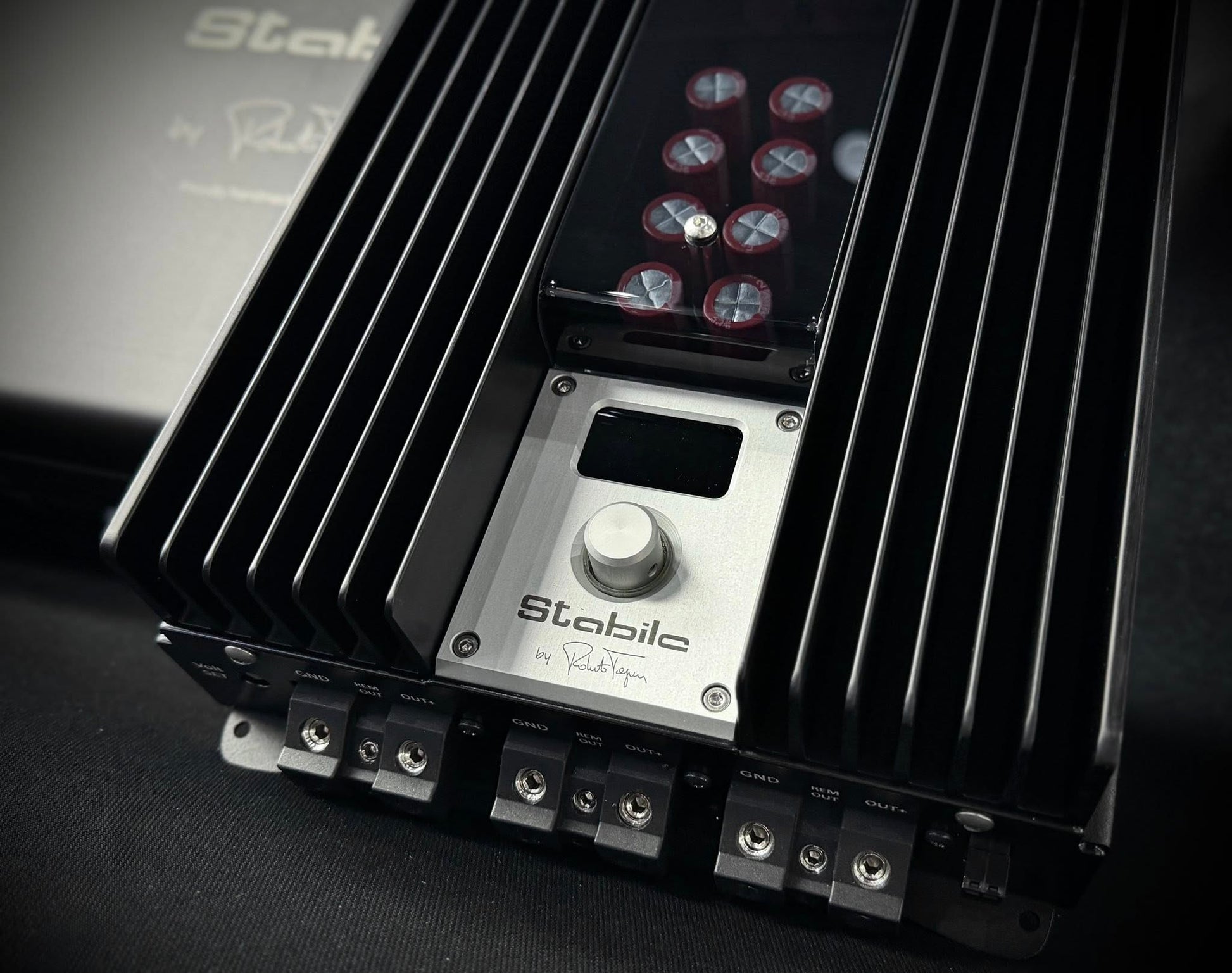

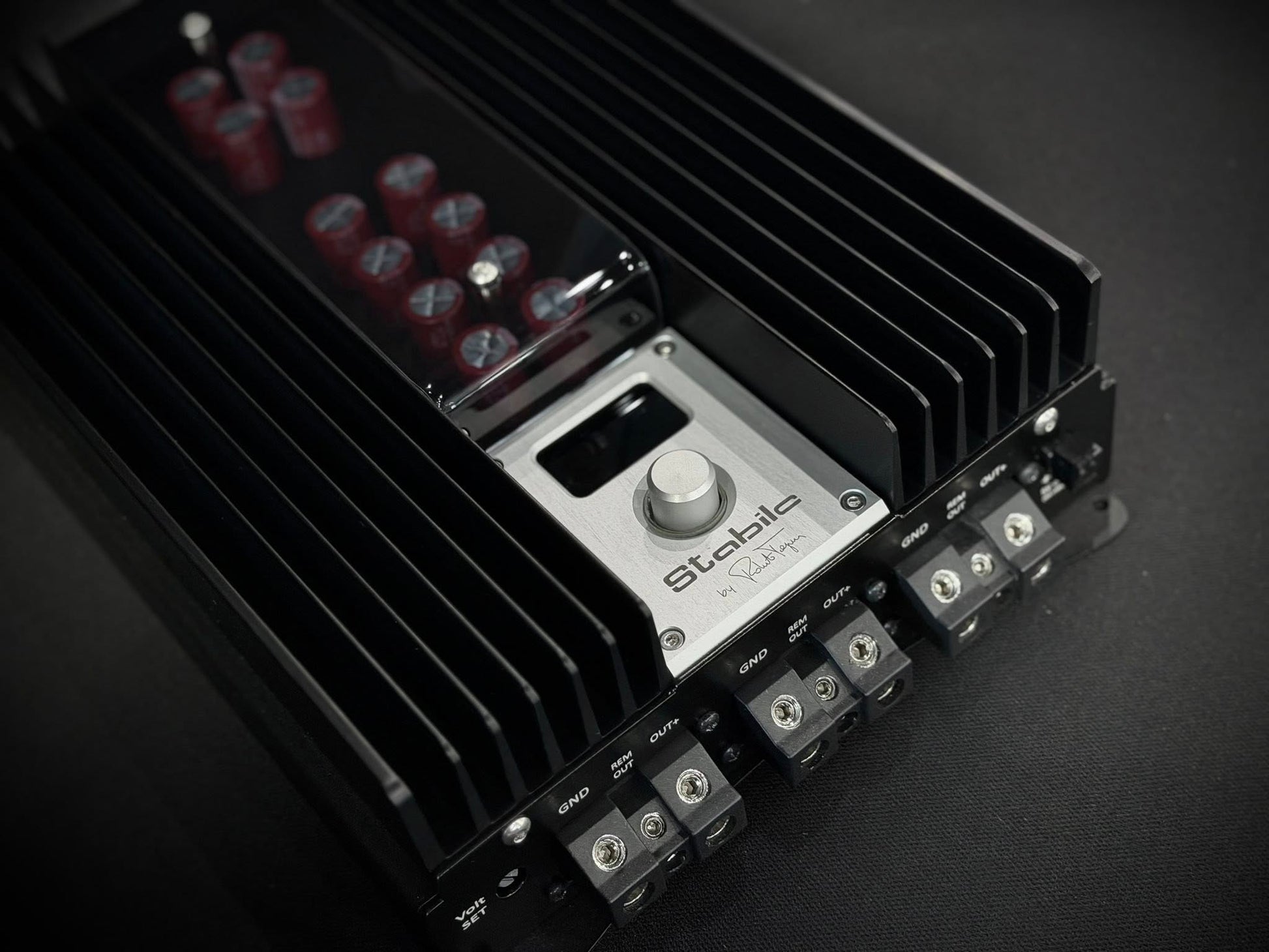

Audio Solution Stabile by Roberto Tognon
Handcrafted and imported from Italy
QUATTORDICI

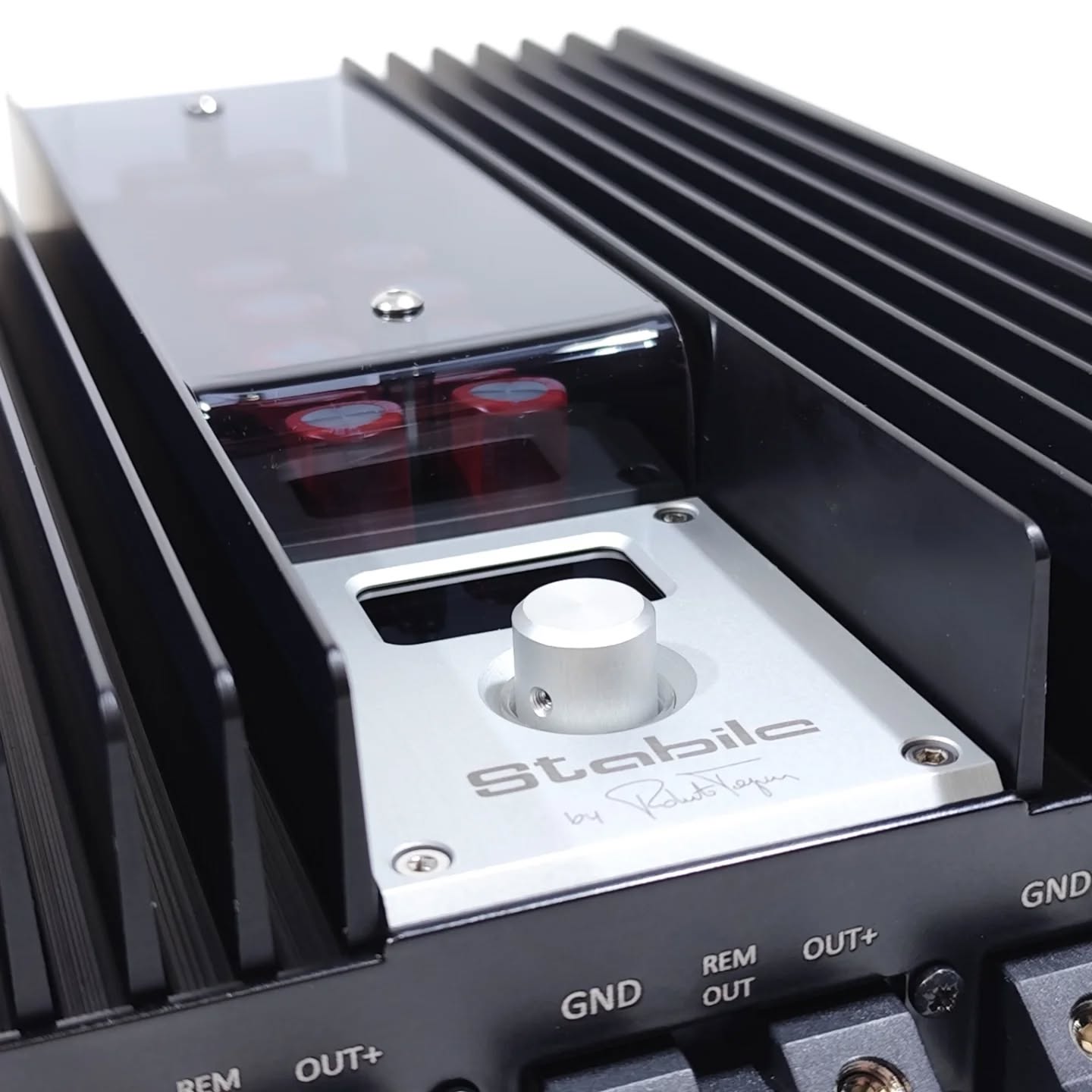

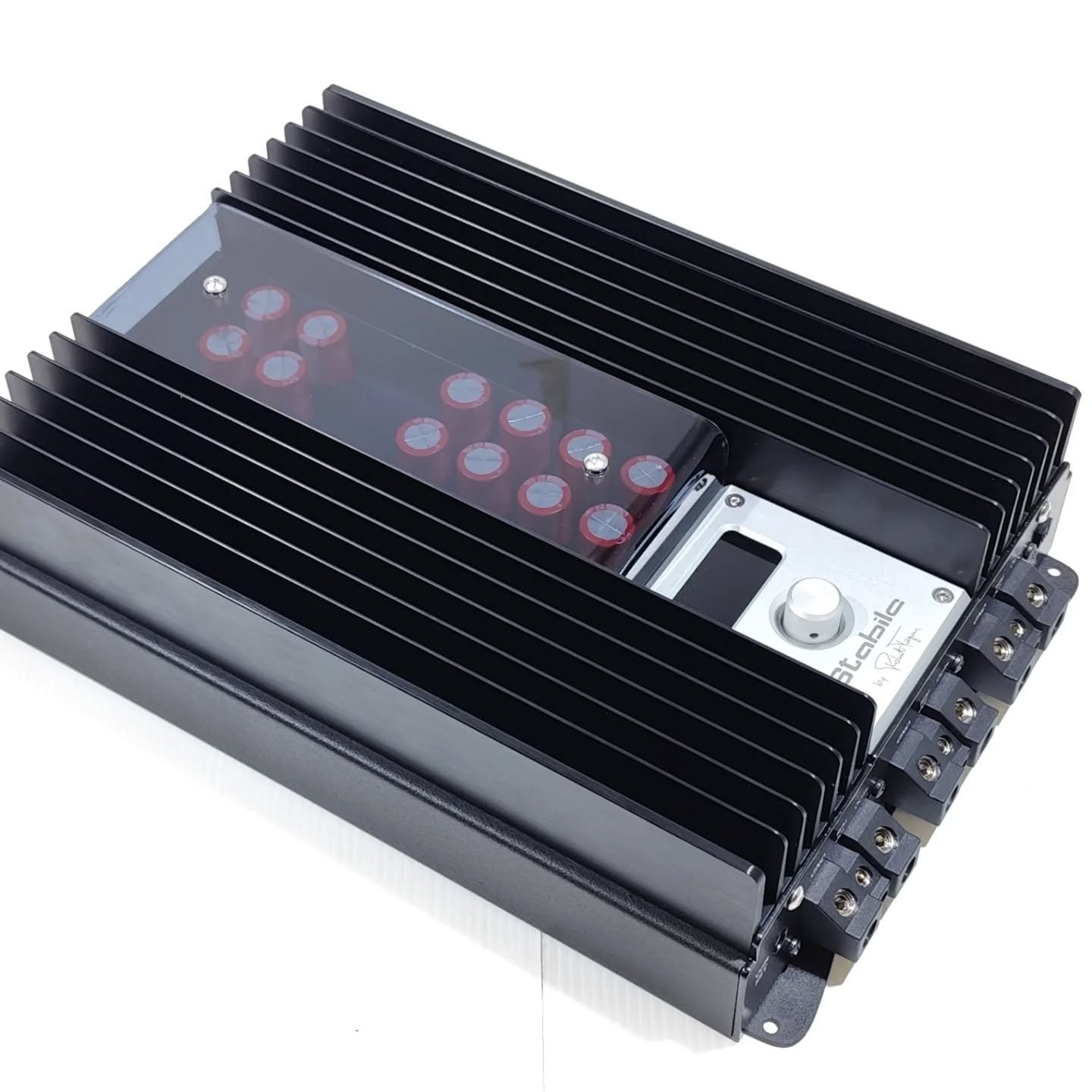

is a STEP-UP DC-DC converter conceived in a compact c-n-c milled aluminum chassis,
Sober design, solidly built with high quality components to ensure the best long-lasting performance.
PTH combined with SMD components

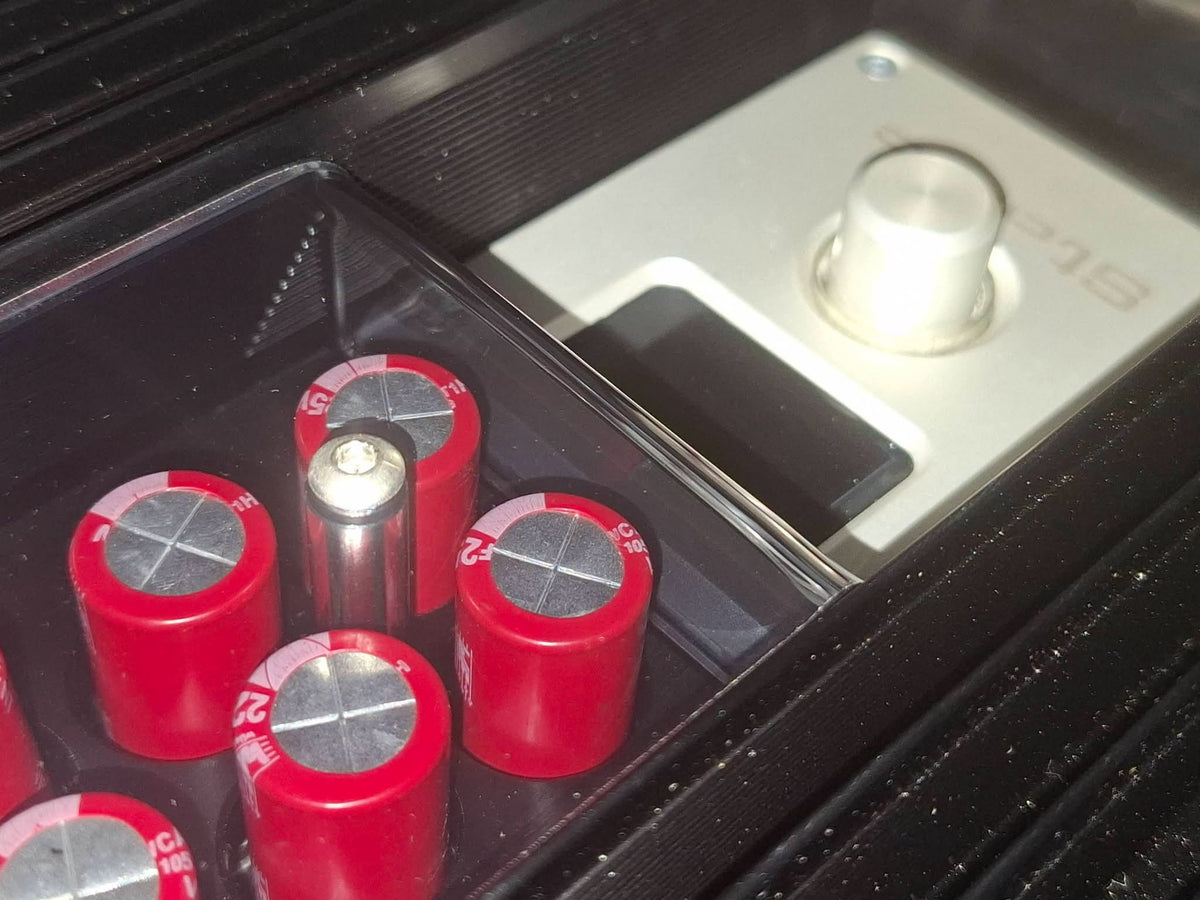

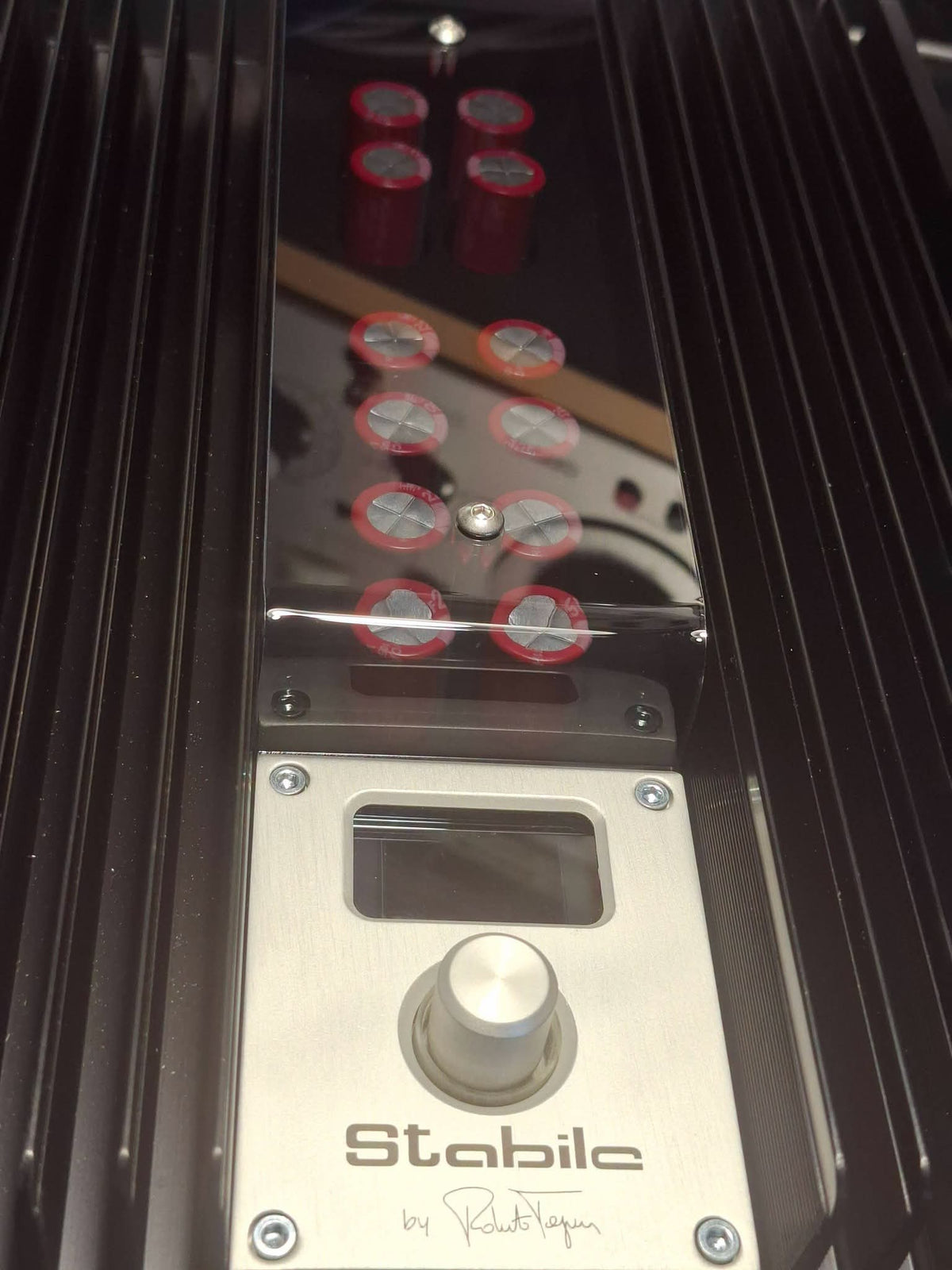

Very high capacity Nichicon capacitors 221° F, Low ESR
5V / 4A "remote" out for digital player or other devices

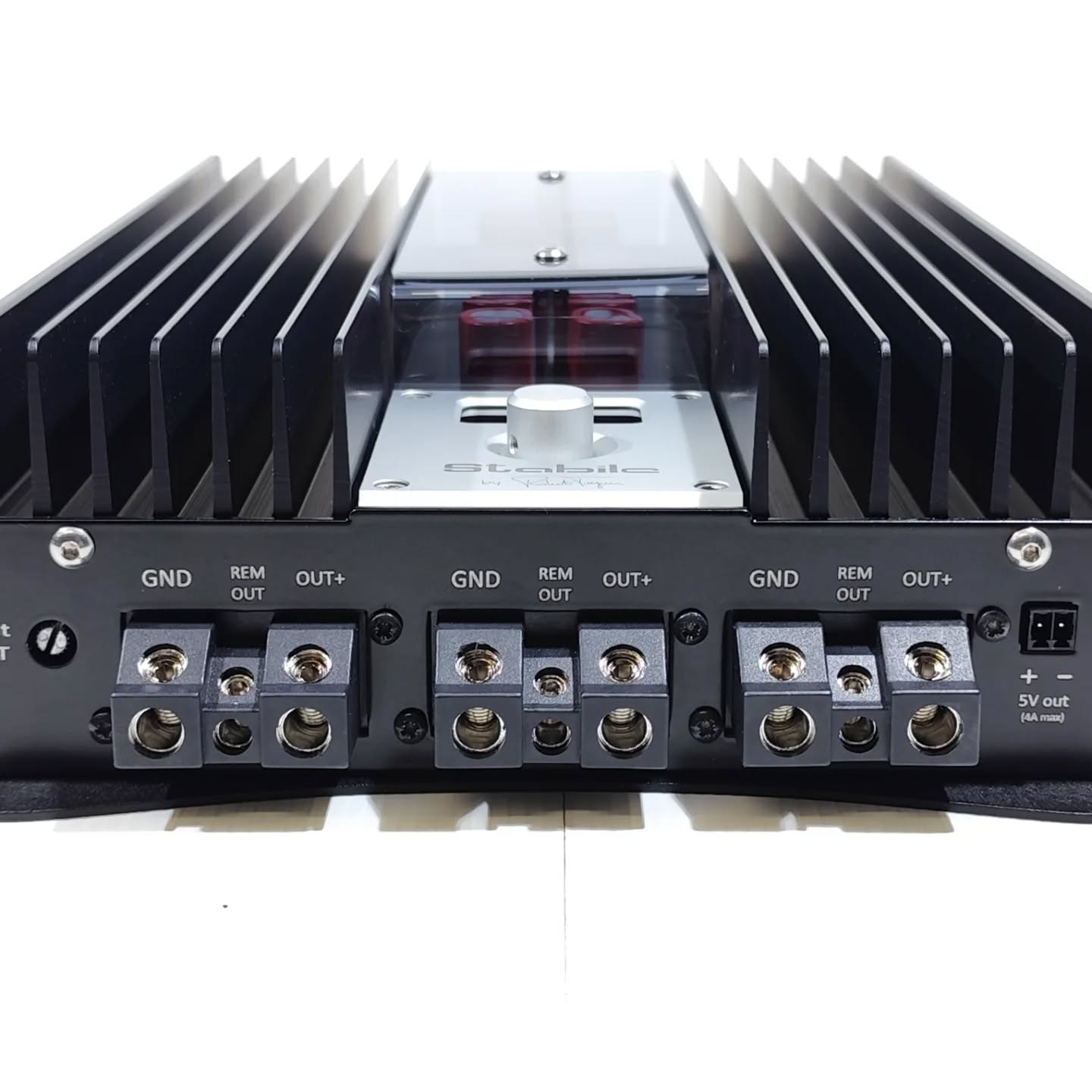

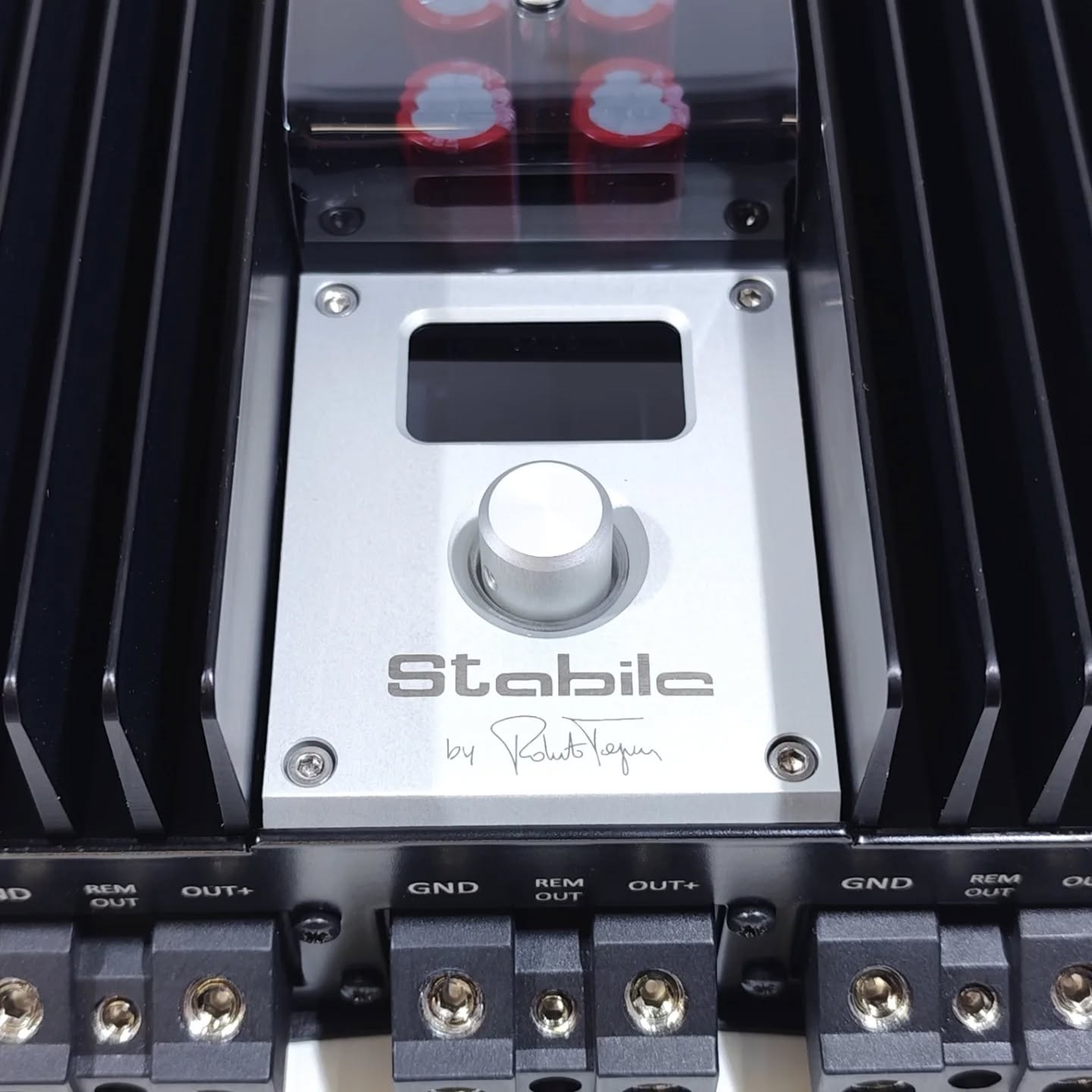

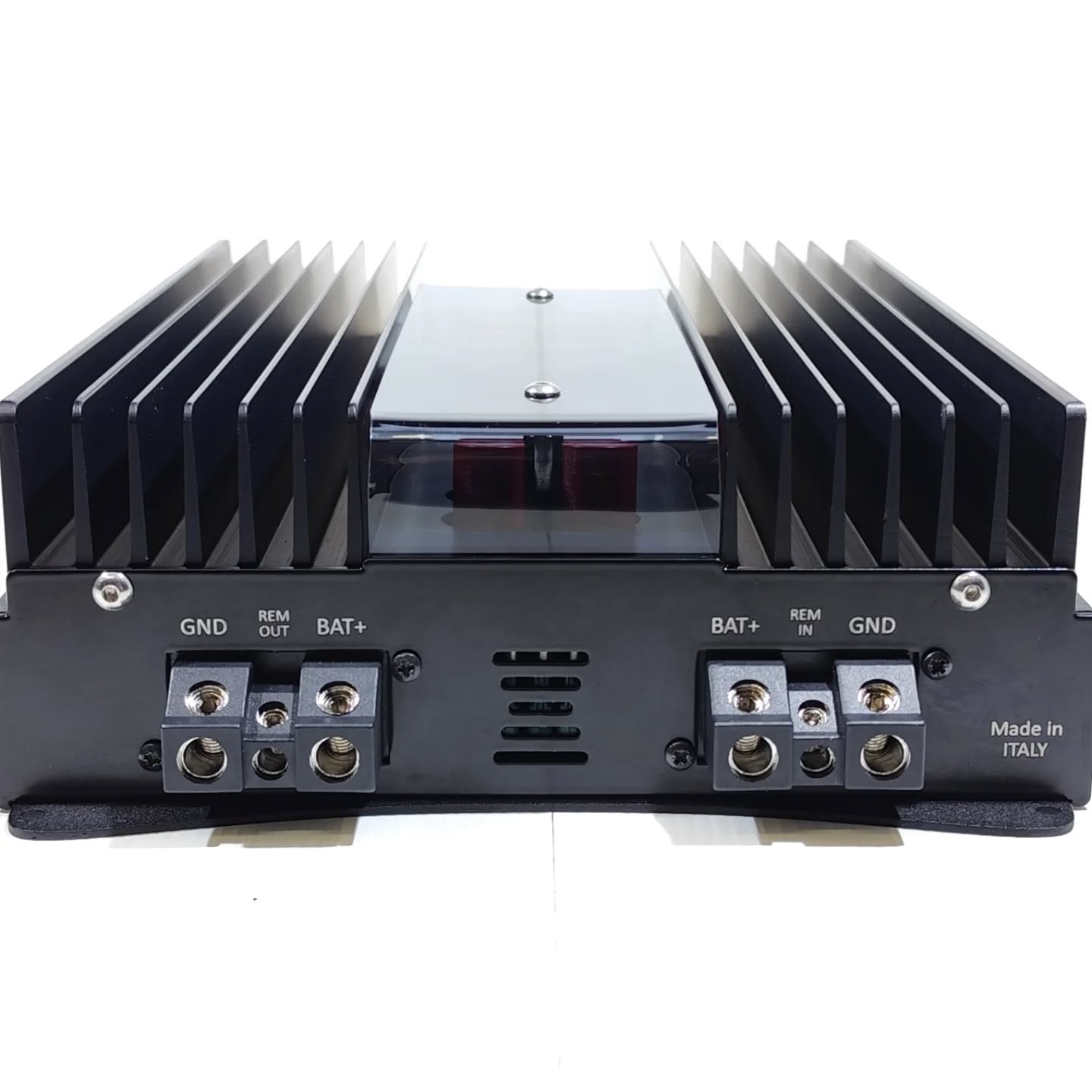

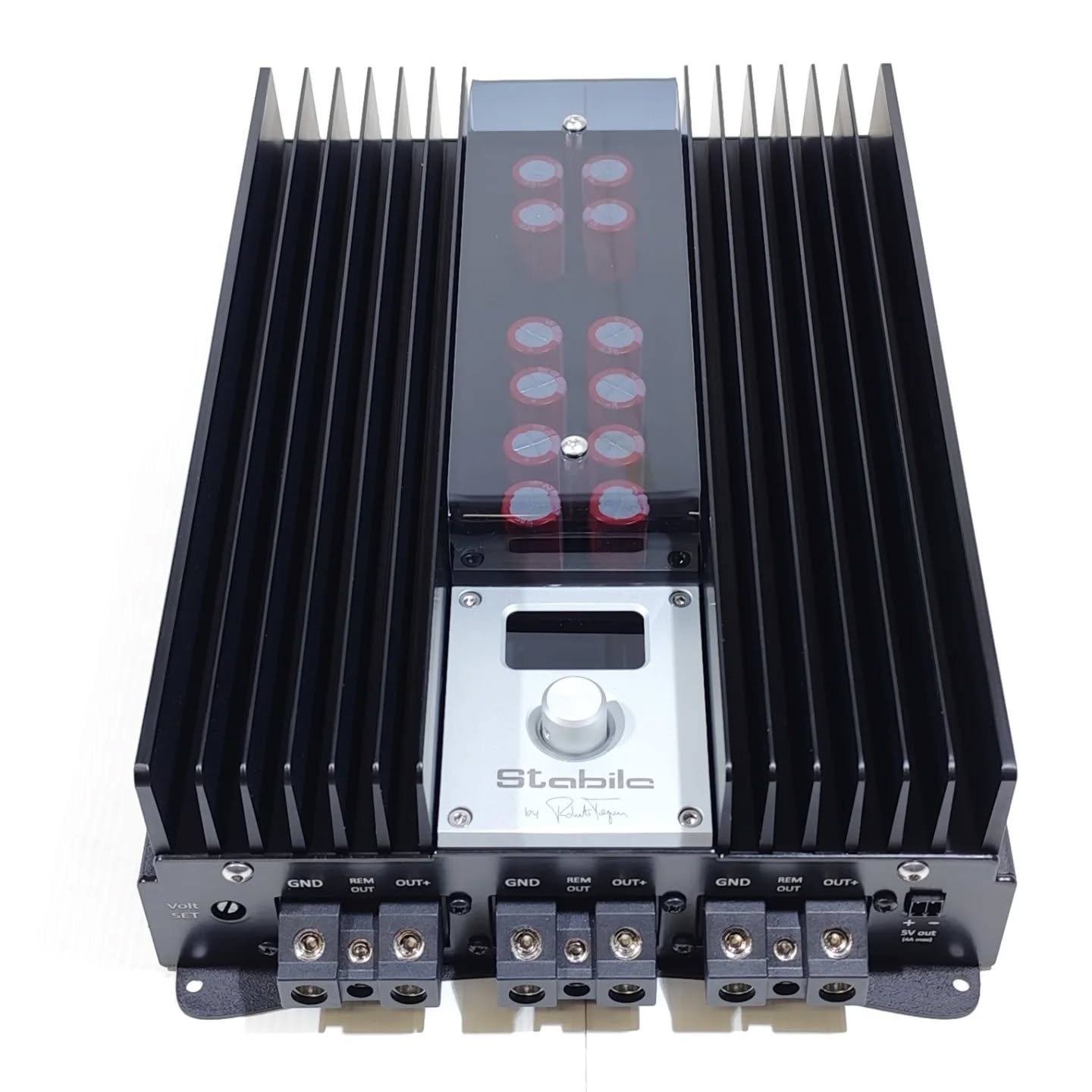

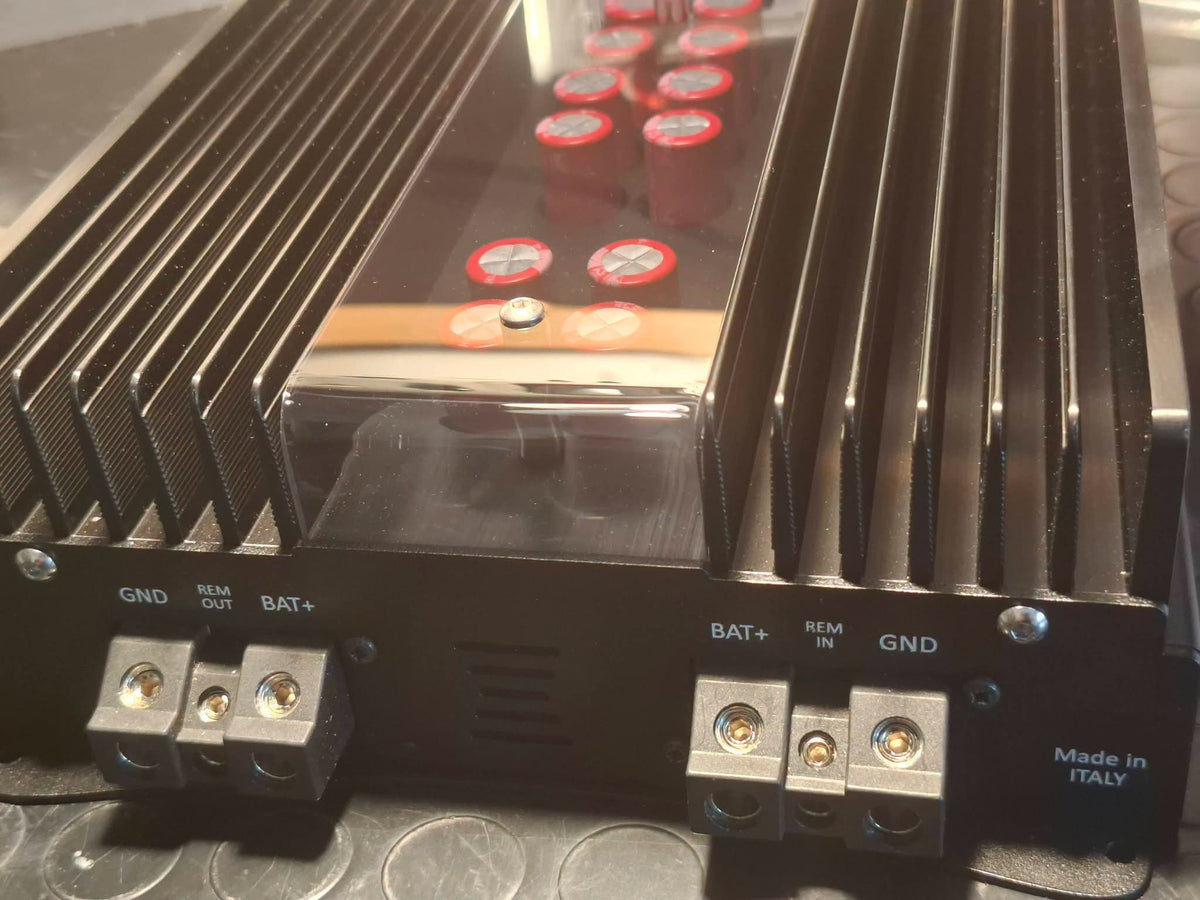

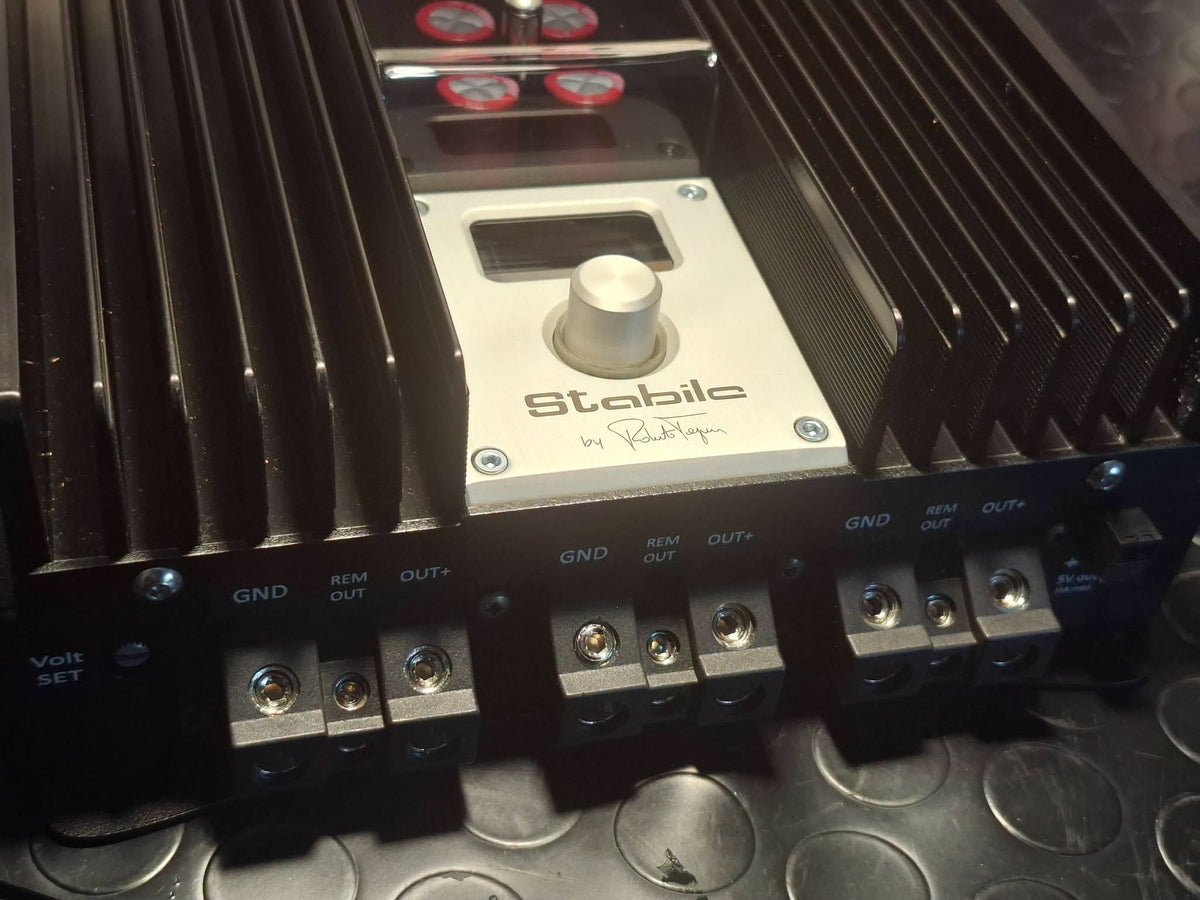

Two output terminal block
Push-Pull technology for best performance

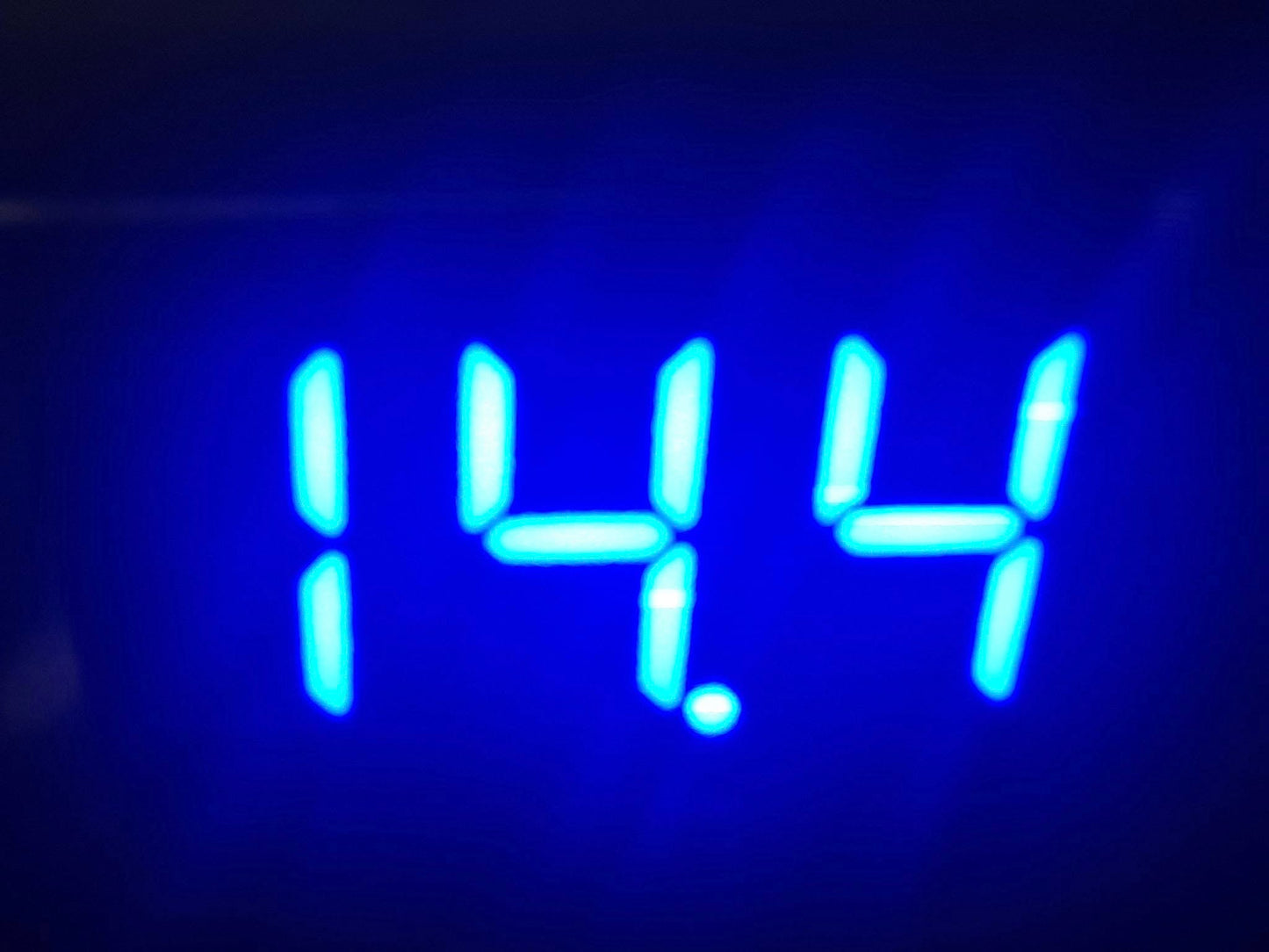

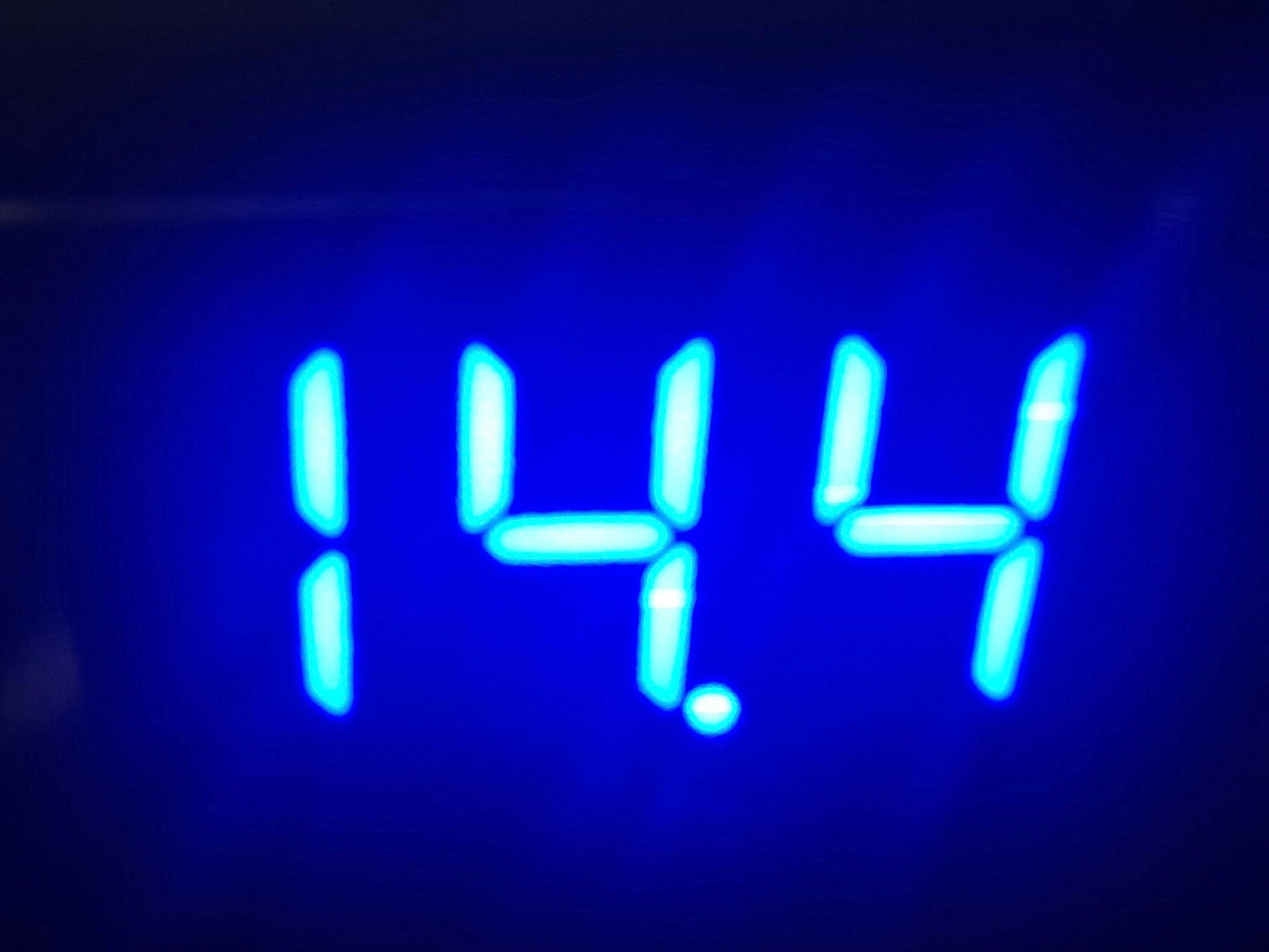

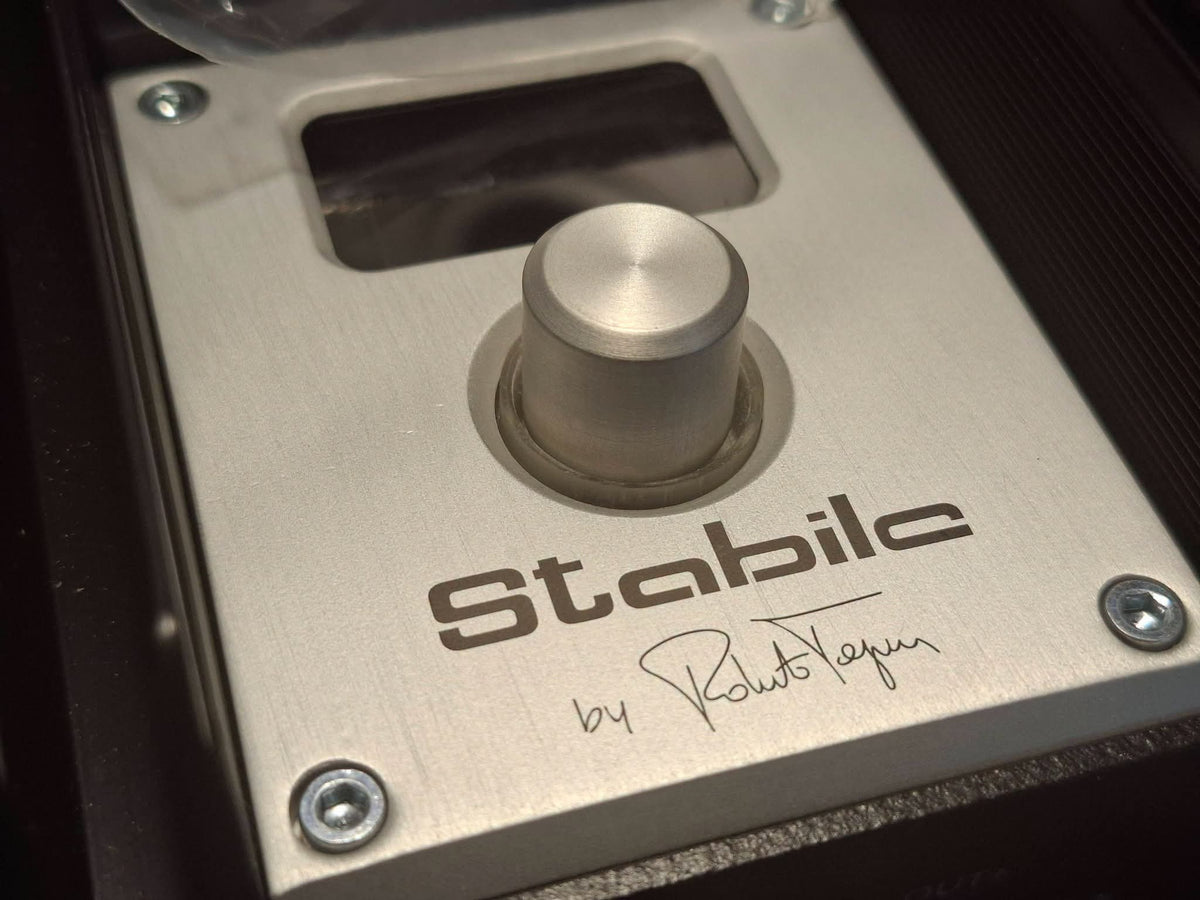

Voltage IN/OUT display (selectable)

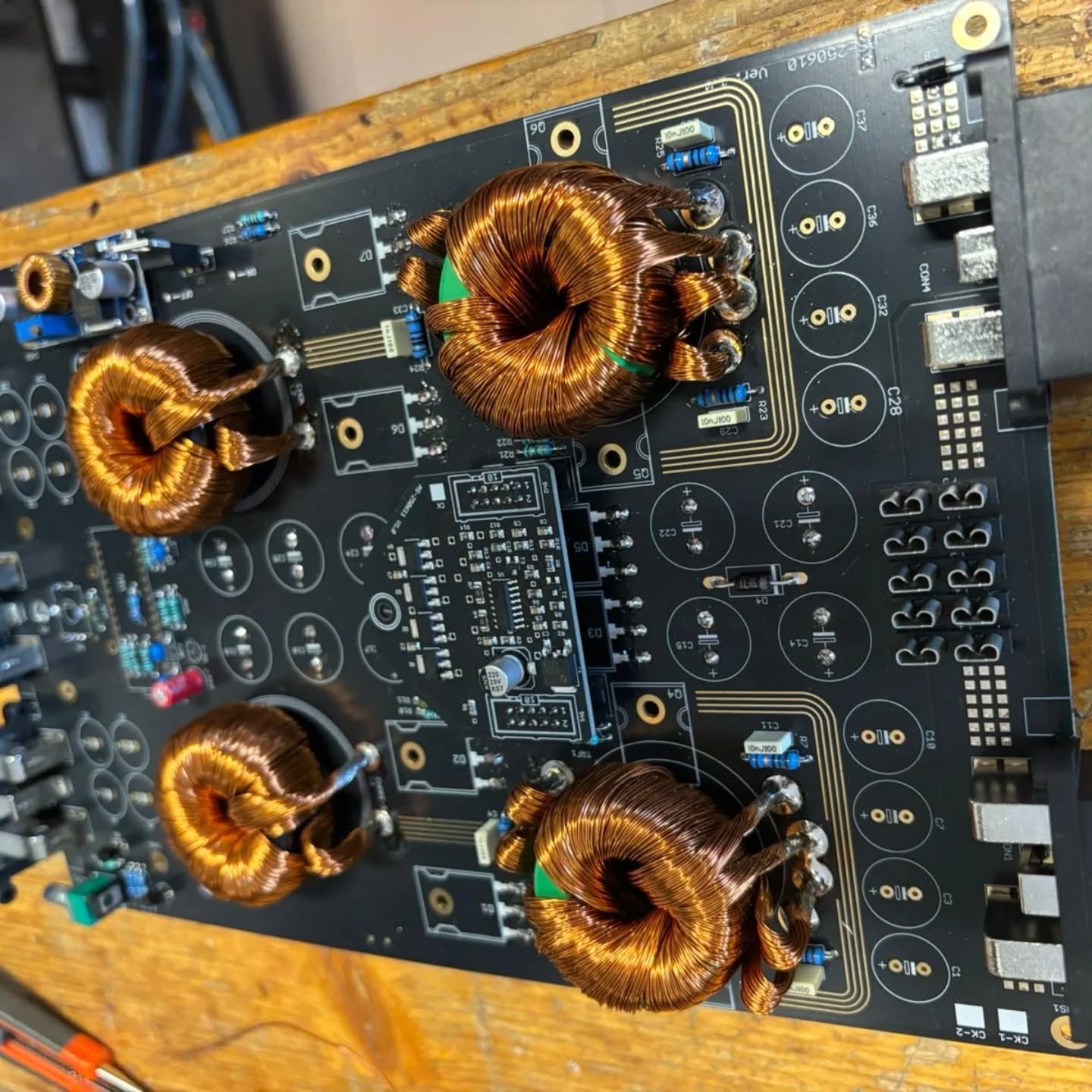

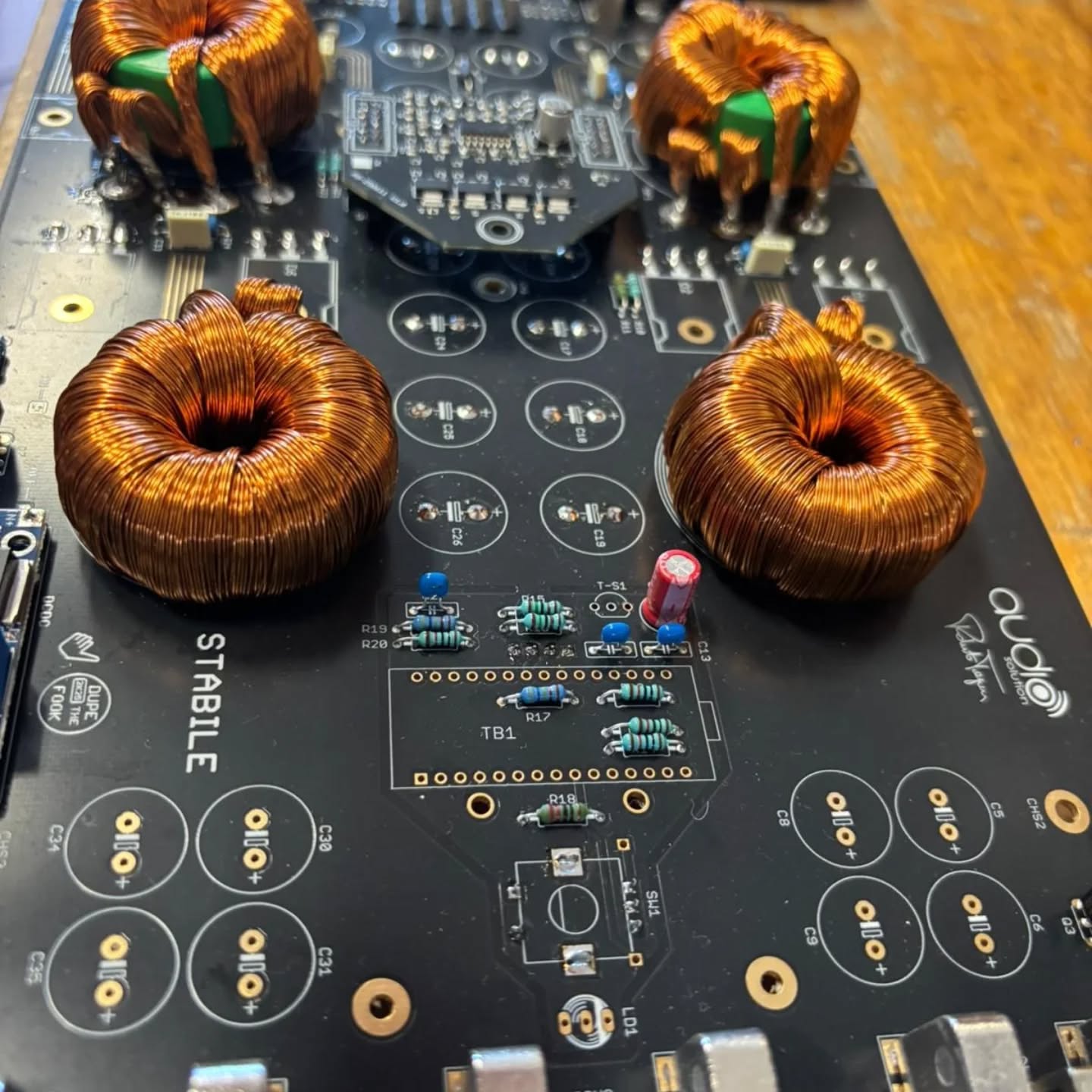

Gold plated printed circuit board (105um copper)
Big output filter for “clean” power output
Standby current < 0.1 mA
On current Up to 0.2 A
Voltage in min 8.5 Volt
Voltage in max 17 Volt
Voltage Out min Volt battery – 0.5 Volt
Voltage Out max (adjustable) 16 Volt
Base work Frequency 50 KHz
Output work Frequency 100 KHz

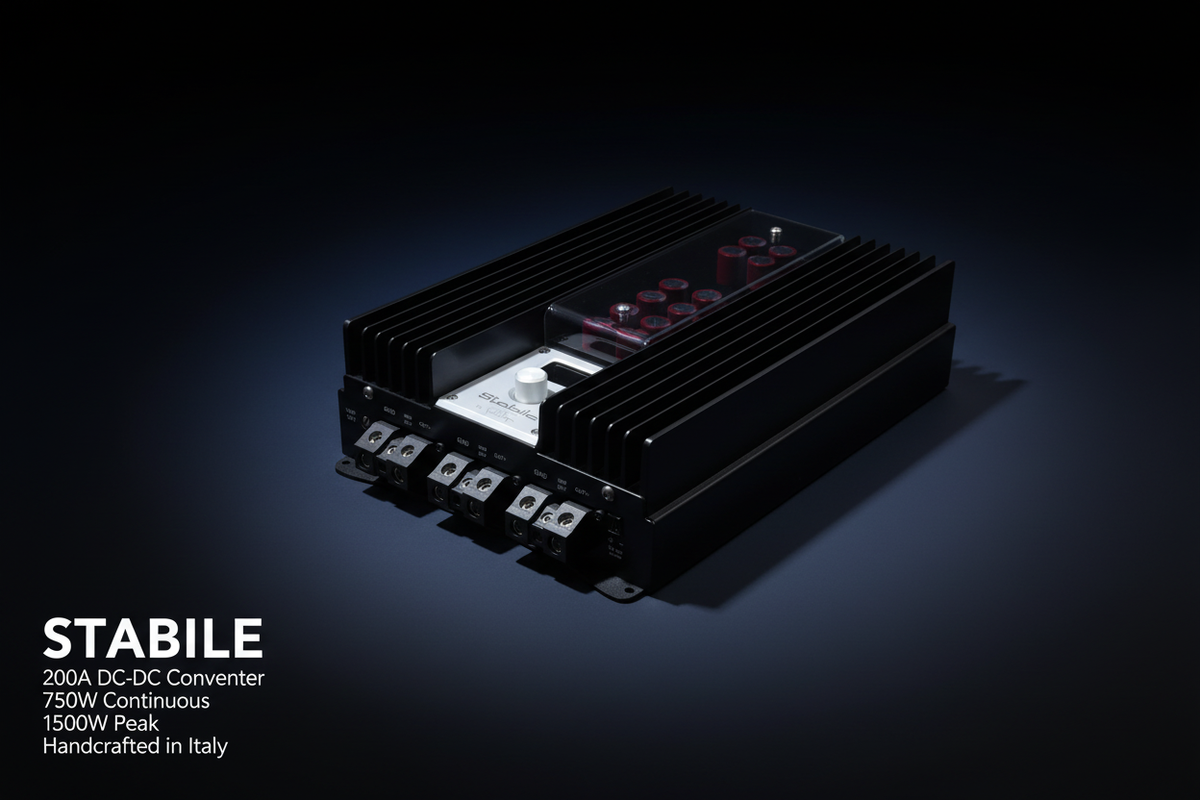

Power handling 750W continuous, 1500W for 10 seconds
It can drive an audio system up to 1600W rms in a normal music program.
Designed for drive up to 3 amplifiers like the Duecento or Quattrocento.
Cooling system Internal fan (2 step speed)
Over temperature protection 185° (+/- 5%)
Dimensions: Width 280mm x Length 190mm x Height 60mm
(11" x 7.486" x 2.3622")
Weight: 6.57 pounds
Working temperature: 32 to 122 F
Internal fuses 3x35 A
Proper installation guarantees better performance, follow these suggestions for installation.
- For power connections use only good cables, of suitable sections and protected in the engine compartment. The cables for car-audio applications are very flexible and therefore easy to install.
- Carefully take care of the laying of the cables and operate in order to follow different routes to signal cables from power cables.
- It is a good idea that the mass of the amplifiers is connected to the same point, together with the car radio's one.
Example: if there are two amplifiers in the trunk, find a good grounding point for the amplifiers themselves and bring the mass of the car radio to the same point using a cable (3-5mm).
- Fix the voltage stabilizer securely, to avoid its movement and then the cables jostling.
- A well-designed and equipped system may involve the collection of various devices, if this happens, ensure adequate ventilation of the place where the amplifiers are installed, perhaps with the aid of an additional forced air flow by a fan inside the various compartments if is need.
Audio Solution covers this warranty product for a period of three (3) years, the retailer's receipt will be valid. Should malfunctions occur due to defects in construction, the device will be repaired by the Audio Solution (or delegates) at no cost to the customer, who will spend only the shipping costs.
It is essential, to take advantage of the guarantee, that the product is returned to your retailer with the receipt or invoice that proves the date of purchase.
The product that will be returned to the Audio Solution will be repaired in any case, charging the cost in case the guarantee is discovered.
The guarantee is not valid in the following cases:
- The product is damaged by incorrect use.
- The product is subject to accident or altered.
- The product has not been repaired by Audio Solution or delegates.
- The product has been connected / installed incorrectly.
- The product was intended for wrong use.
