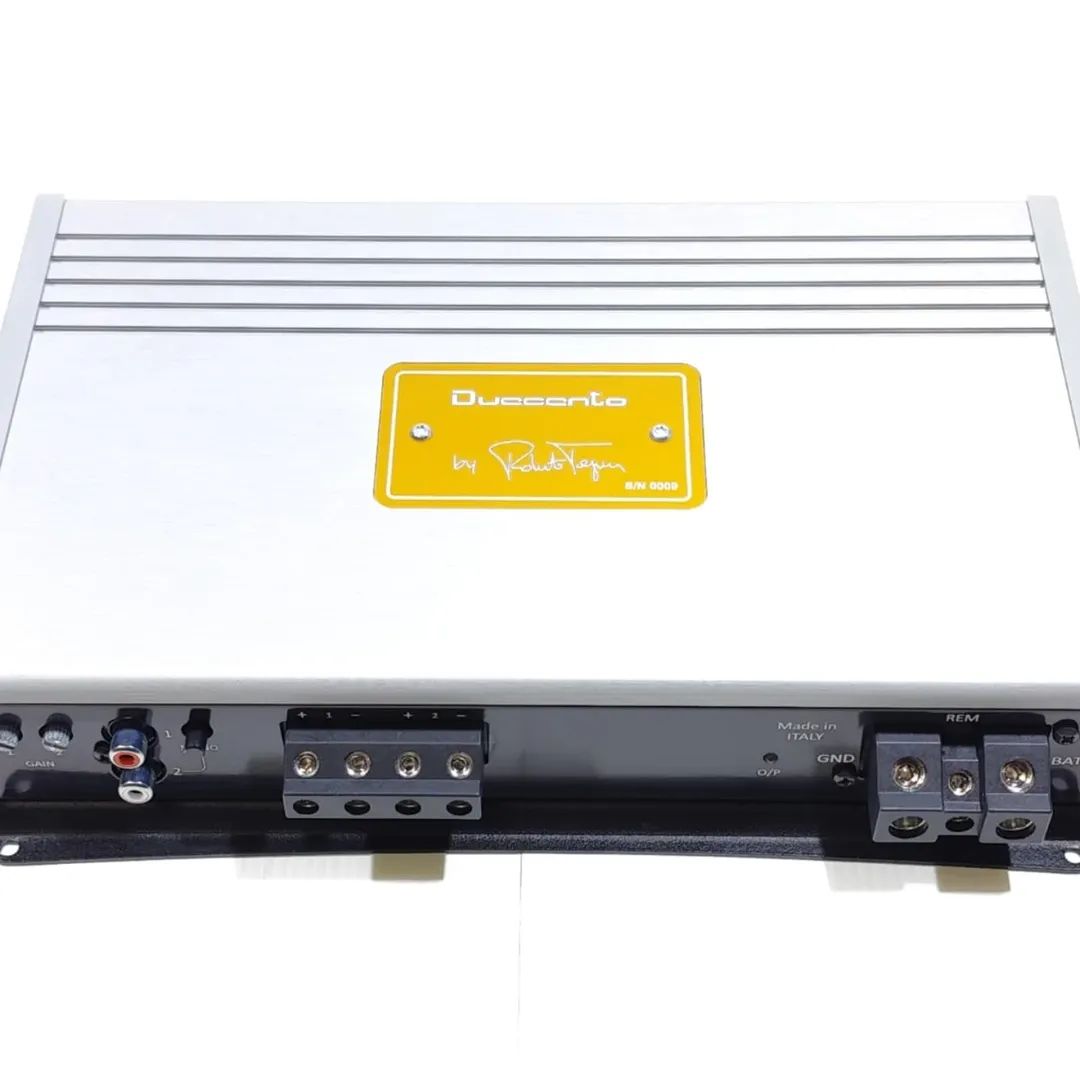

DUECENTO by Roberto Tognon

is a 2 channels amplifier conceived in a compact cnc milled alluminium chassis,
sober design, solidly built with high quality components
to ensure the best long-lasting audio performance.

Product overview

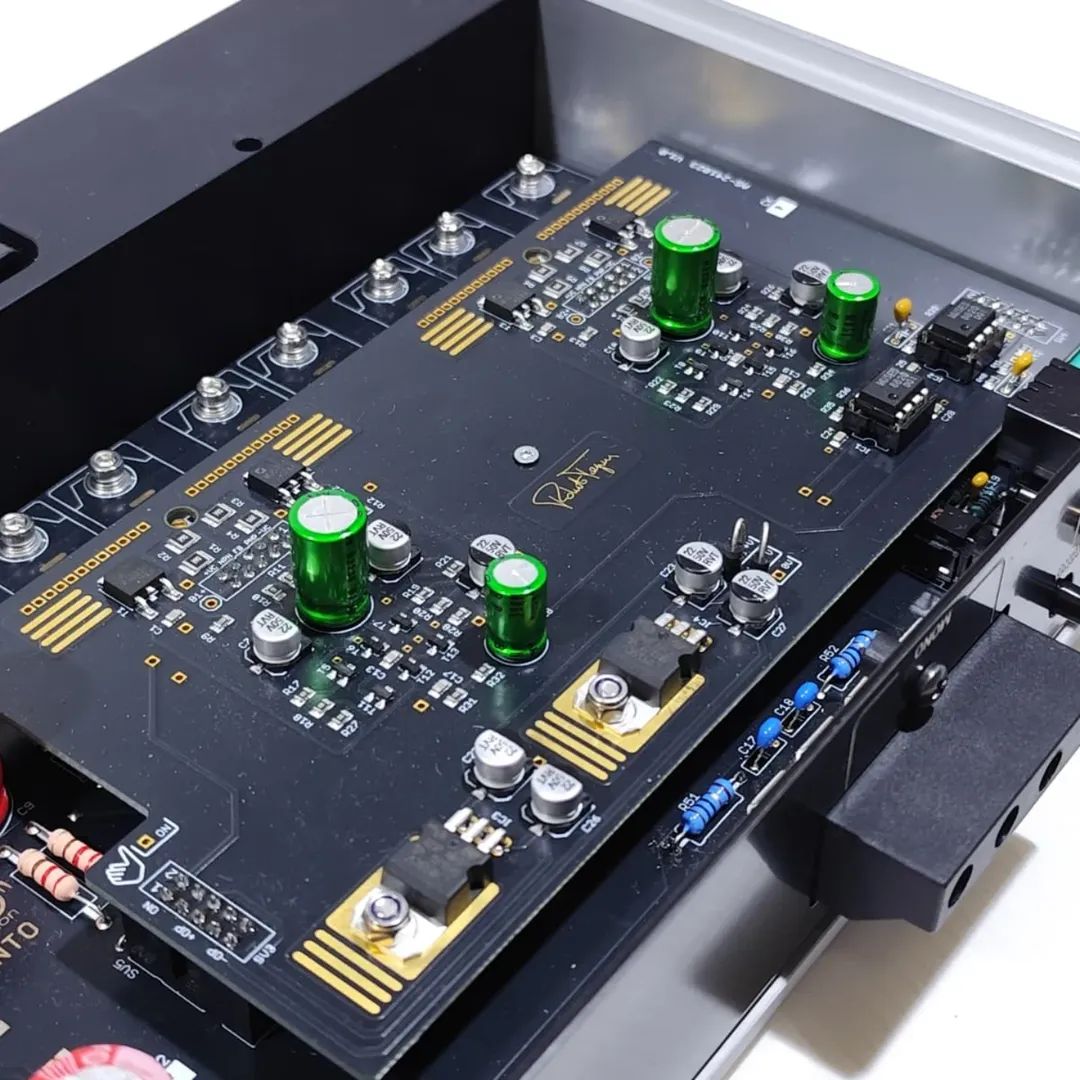

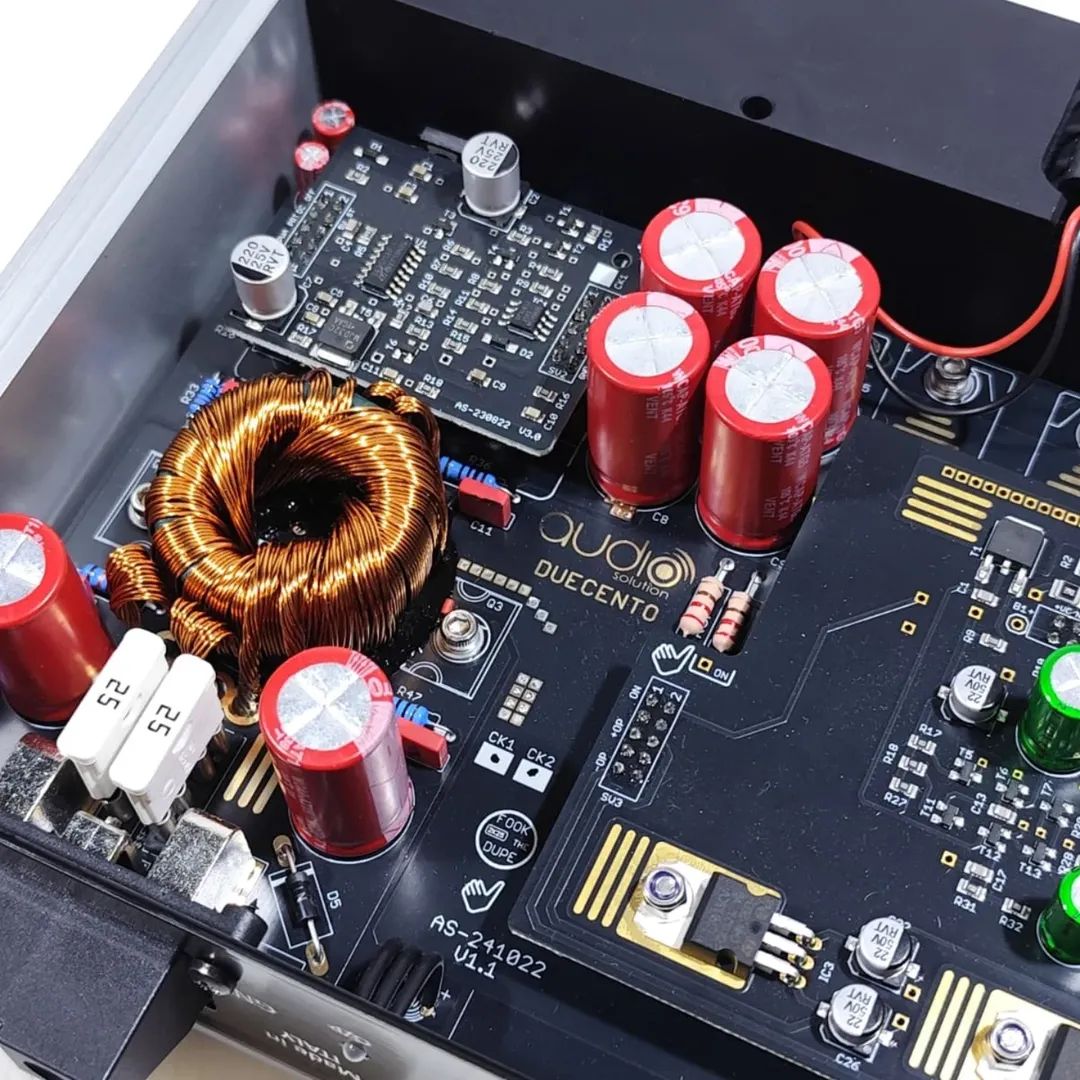

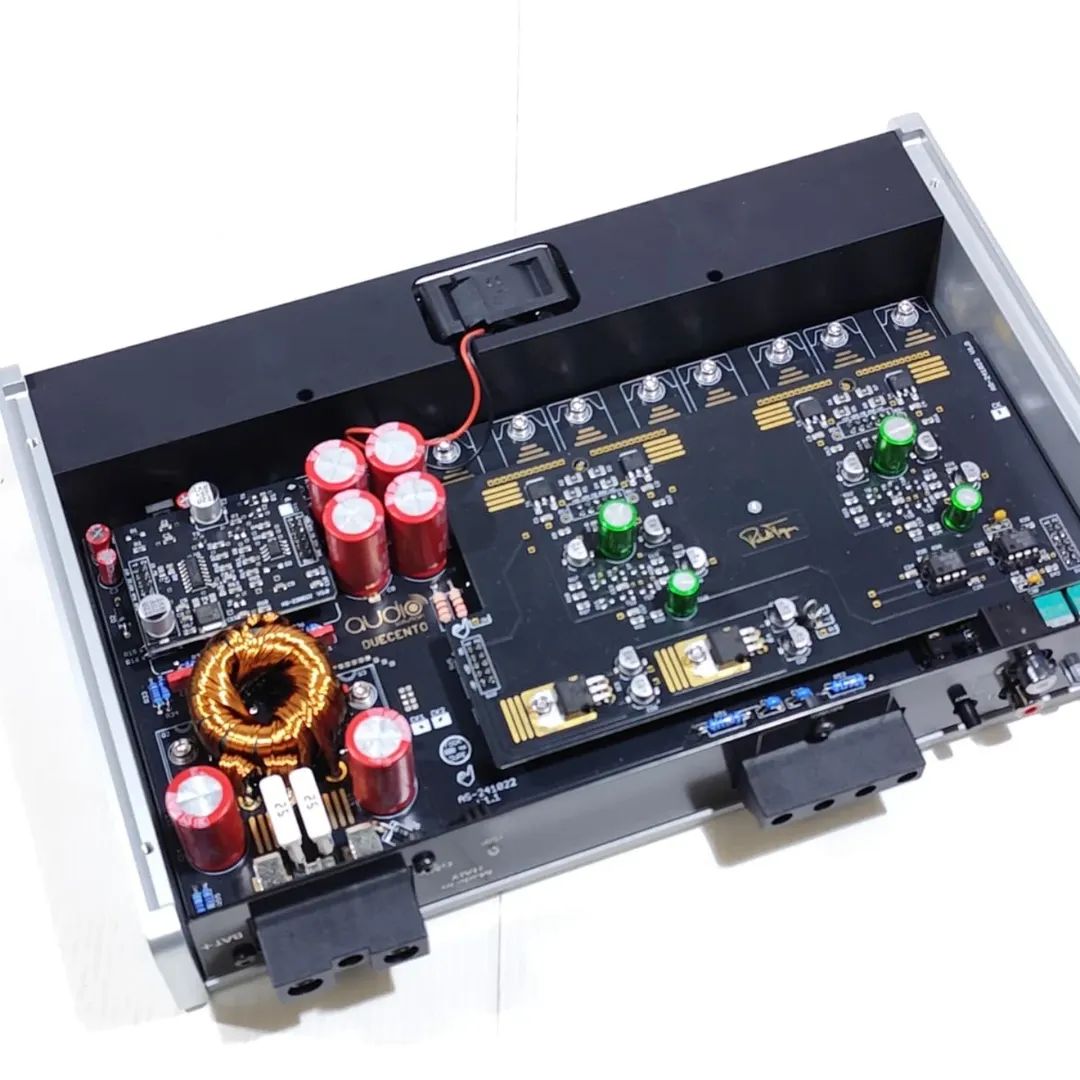

PTH combined with SMD components

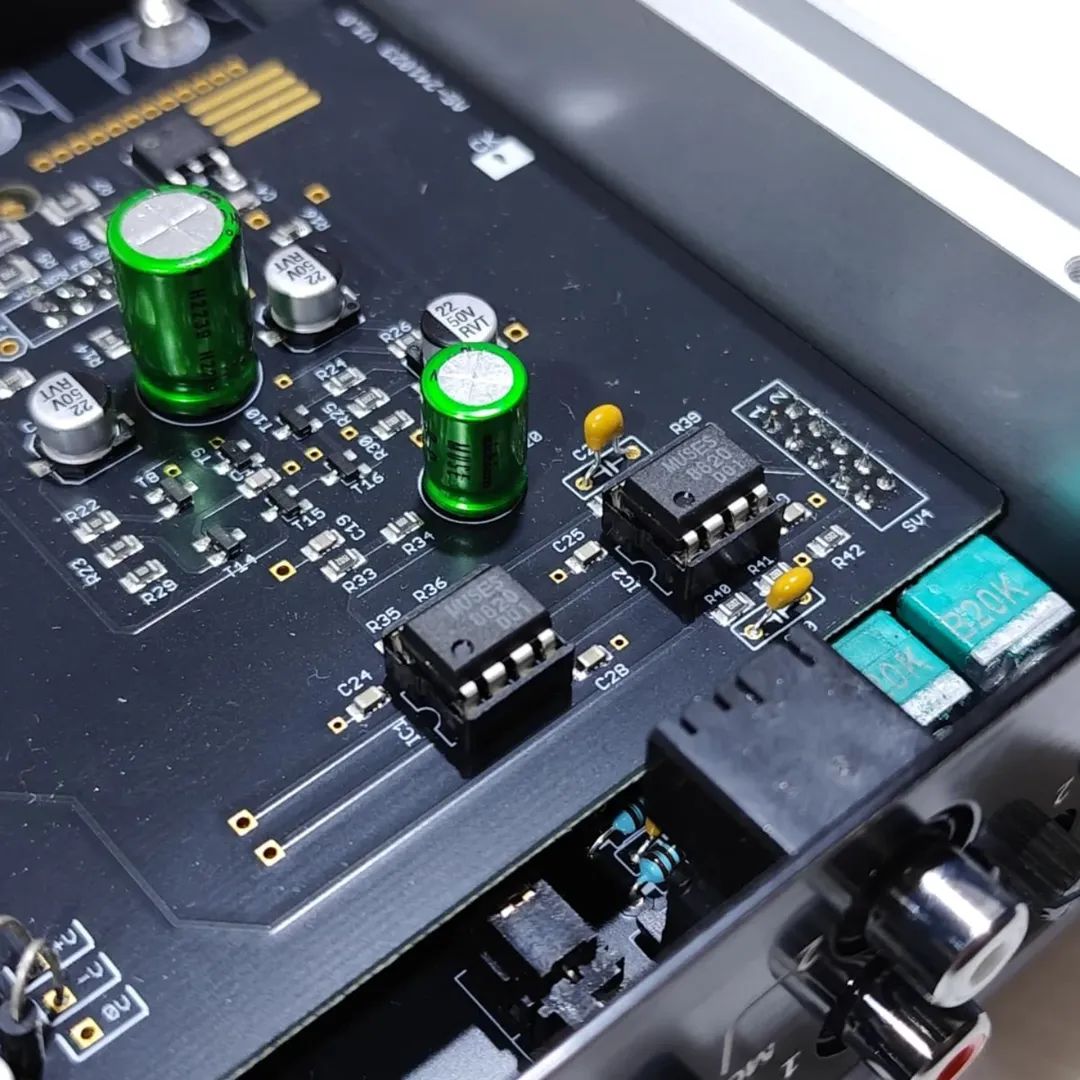

High quality operational amplifiers on the audio path
WURTH / Nichicon / Panasonic Electrolytic Capacitors 105 ° low ESR
Nichicon MUSE HQ capacitors on the audio path
ATE power resistors on the signal
SANKEN Darlington transistor for audio BJT

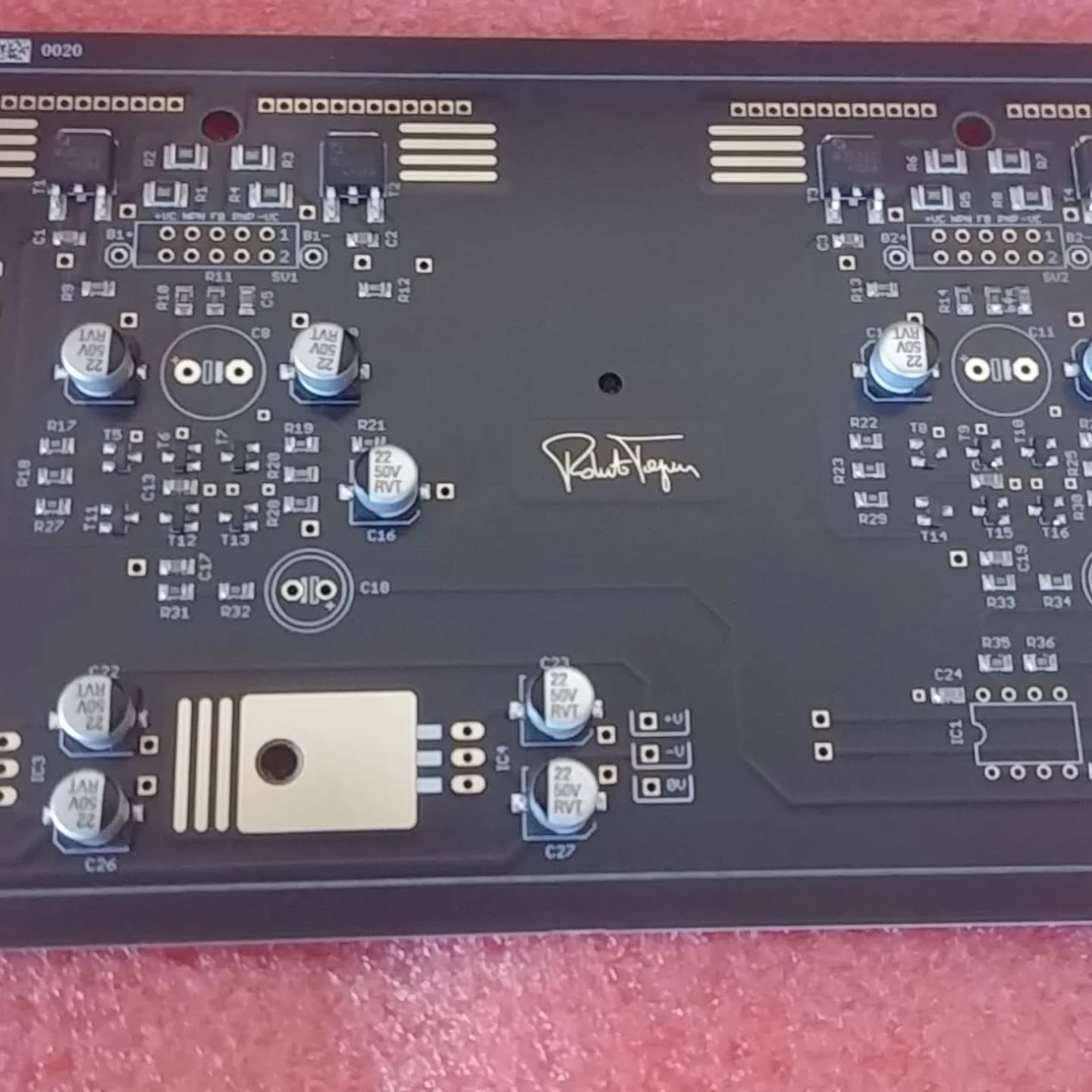

Gold plated printed circuit board (105um copper)
A lot of watts in very compact design

*Handcrafted in Italy

Typical power

@ 4Ω - 2 x 200 Wrms
@ 2Ω (musical program only) 2 x 290 Wrms
Mono @ 4Ω (musical program) 1 x 580 Wrms

Minimum impedance:
 2 channels = 2Ω
1 channels (bridged) = 4Ω

Idle current Up to 1.5 A
Efficiency @ 4 Ω >60%
MIN sensitivity: 8 Volt
MAX sensitivity: 0.8 Volt
Input impedance >20K Ohm // 100pF
Frequency response <10Hz -- >110KHz(-3db)
Signal to Noise ratio >98dB
T.H.D. (@ 1 KHz – 5W - 4 Ω) <0.008%
Damping factor @ 4 Ω >150
Amplification type: A/B
Voltage supply 11-15 Volt (D.C.)
Overload/short circuit protection
D.C. presence
Over temperature protection 85°c (+/- 5%)
Dimensions Width=280mm – Length=190mm – Height=60mm
Weight 6.57 pounds
Working temperature 0 - 50°c
Internal fuses 2x25 A

Proper installation guarantees better performance, follow these suggestions for installation.

- Only use shielded cables to connect the audio signal between the car radio and the amplifier, it is not necessary to use very expensive cables, but do NOT use very bad cables!

- The use of good quality RCA connectors guarantees a good contact, lasting over time
and reliable even after several operations of insertion and disarming.

- Shielded cables must be kept at a minimum distance of 10cm c.a. from any generators of car noise, such as power units, pumps, cables, etc.

- For power connections use only good cables, of suitable sections and protected in the engine compartment. The cables for car-audio applications are very flexible and therefore easy to install.

- Carefully take care of the laying of the cables and operate in order to follow different routes to signal cables from power cables.

- It is a good idea that the mass of the amplifiers is connected to the same point, together with the car radio's one.

Example: if there are two amplifiers in the trunk, find a good grounding point for the amplifiers themselves and bring the mass of the car radio to the same point using a cable ( 3-5mm).

- Fix the amplifier securely, to avoid its movement and then the cables jostling.

- A well-designed and equipped system may involve the collection of various devices, if this happens, ensure adequate ventilation of the place where the amplifiers are installed, perhaps with the aid of an additional forced air flow by a fan inside the various compartments.


Audio Solution covers this warranty product for a period of three (3) years, the retailer's receipt will be valid.
Should malfunctions occur due to defects in construction, the device will be repaired by the Audio Solution (or delegates) at no cost to the customer, who will spend only the shipping costs. It is essential, to take advantage of the guarantee, that the product is returned to your retailer with the receipt or invoice that proves the date of purchase. The product that will be returned to the Audio Solution will be repaired in any case, charging the cost in case the
guarantee is discovered.
The guarantee is not valid in the following cases:
- The product is damaged by incorrect use.
- The product is subject to accident or altered.
- The product has not been repaired by Audio Solution or delegates.
- The product has been connected / installed incorrectly.
- The product was intended for wrong use.
